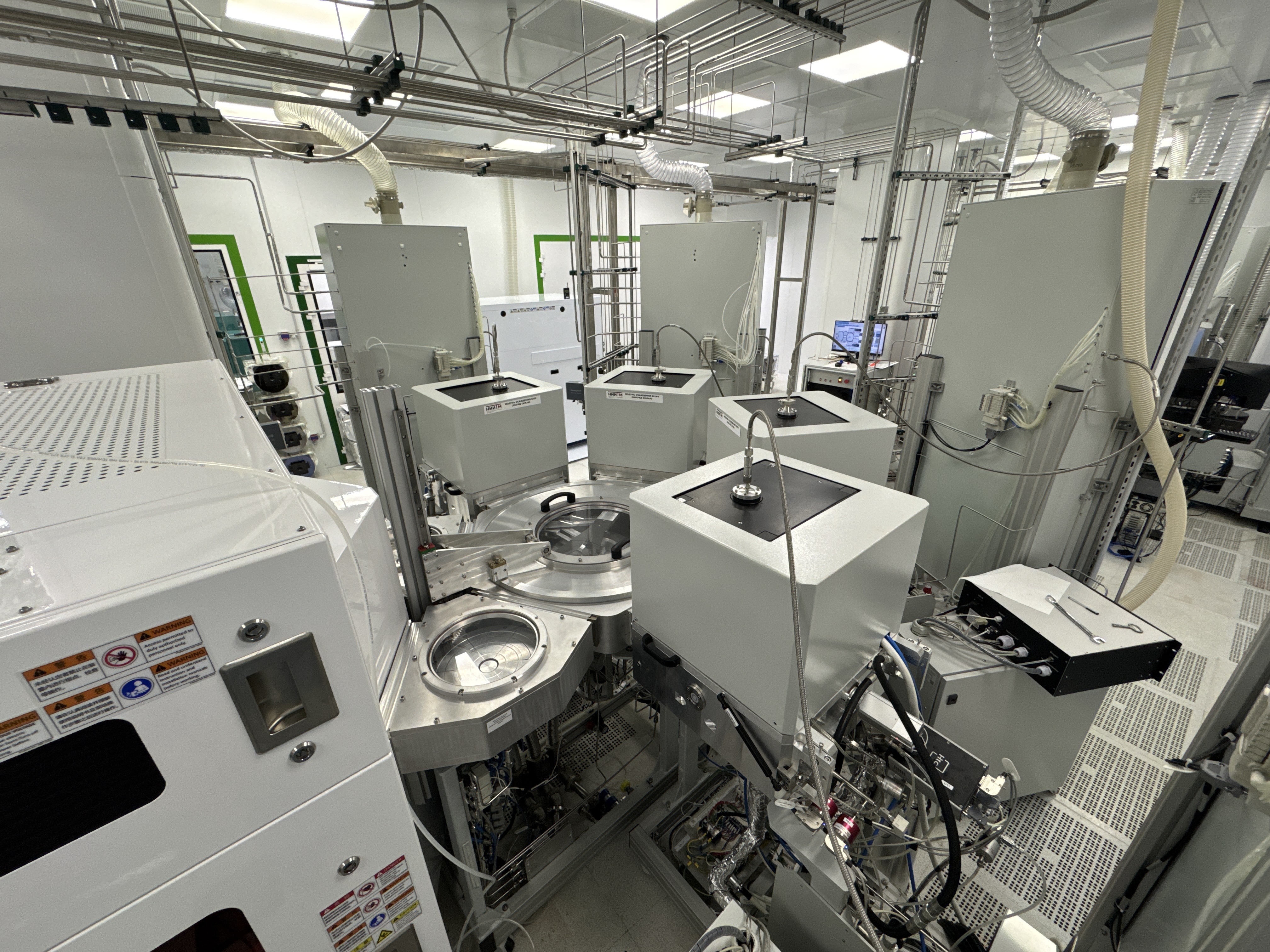

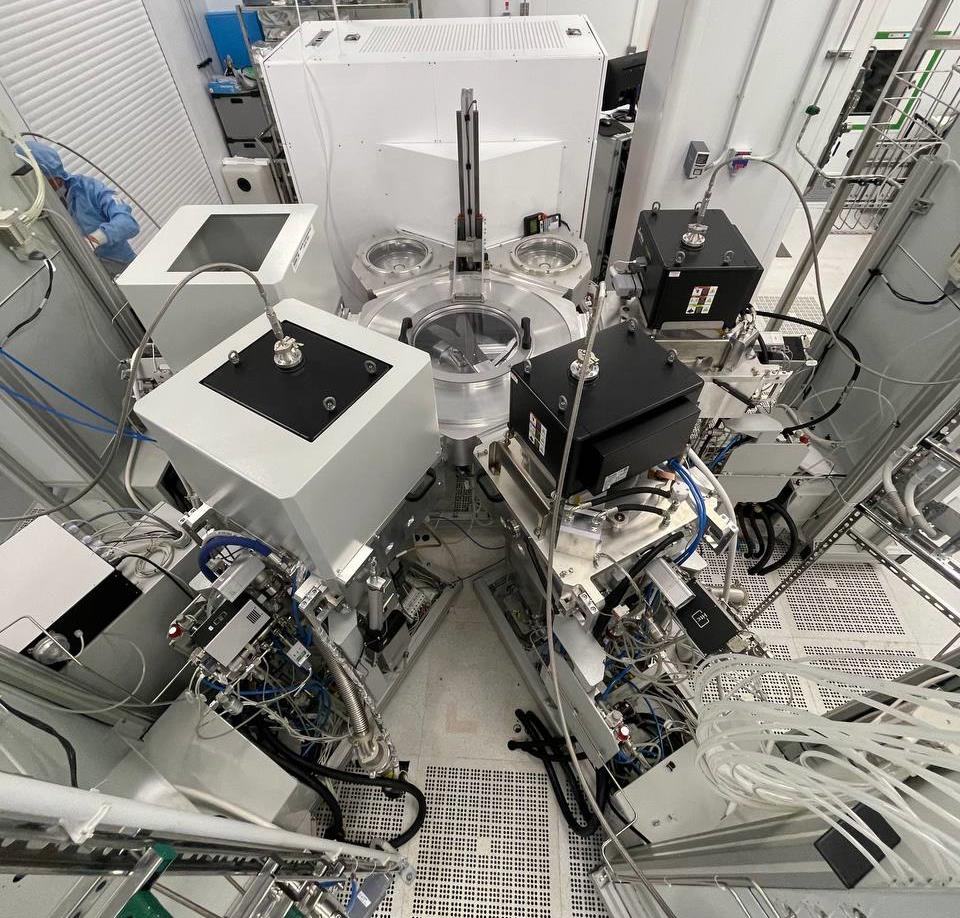

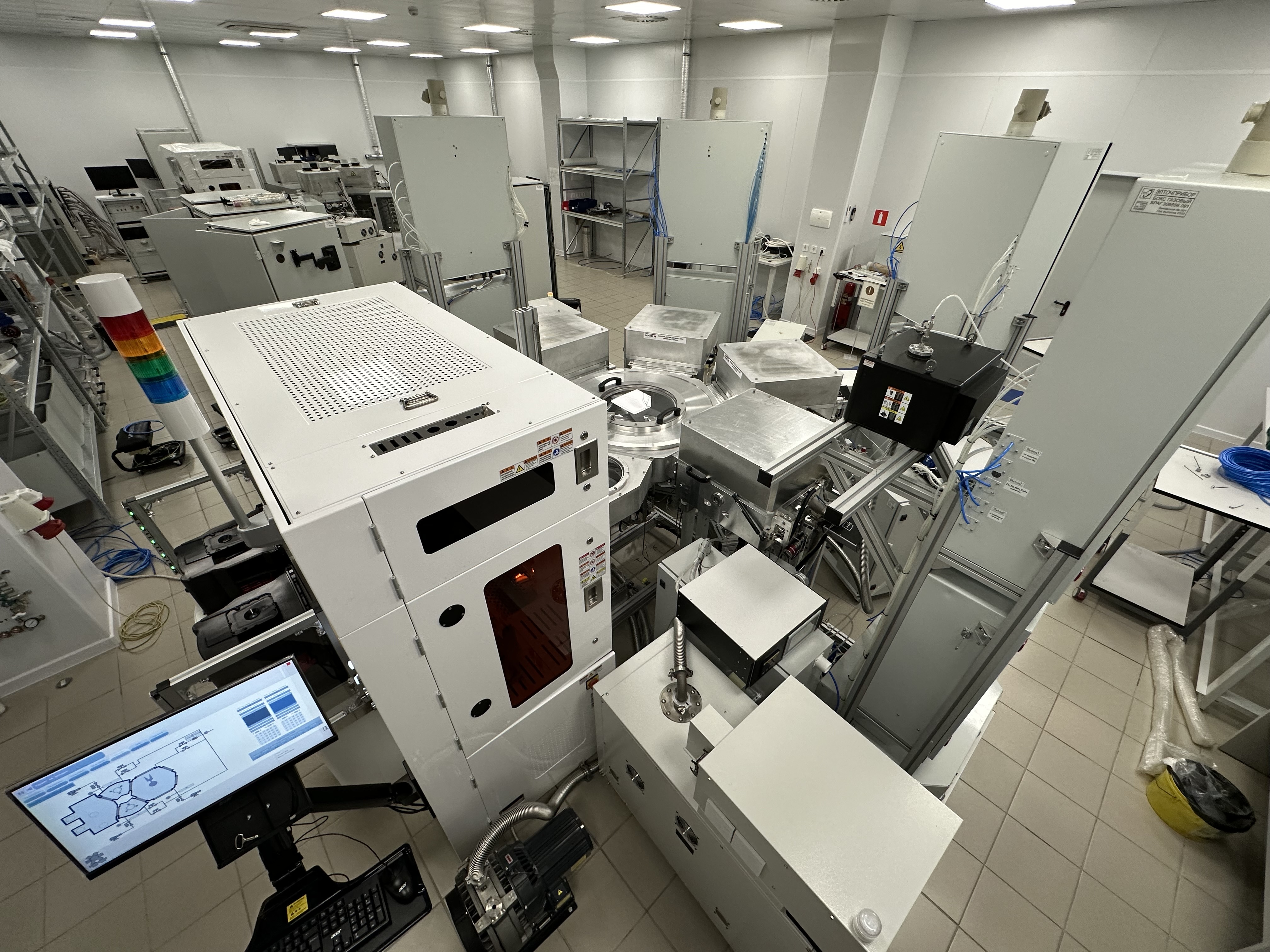

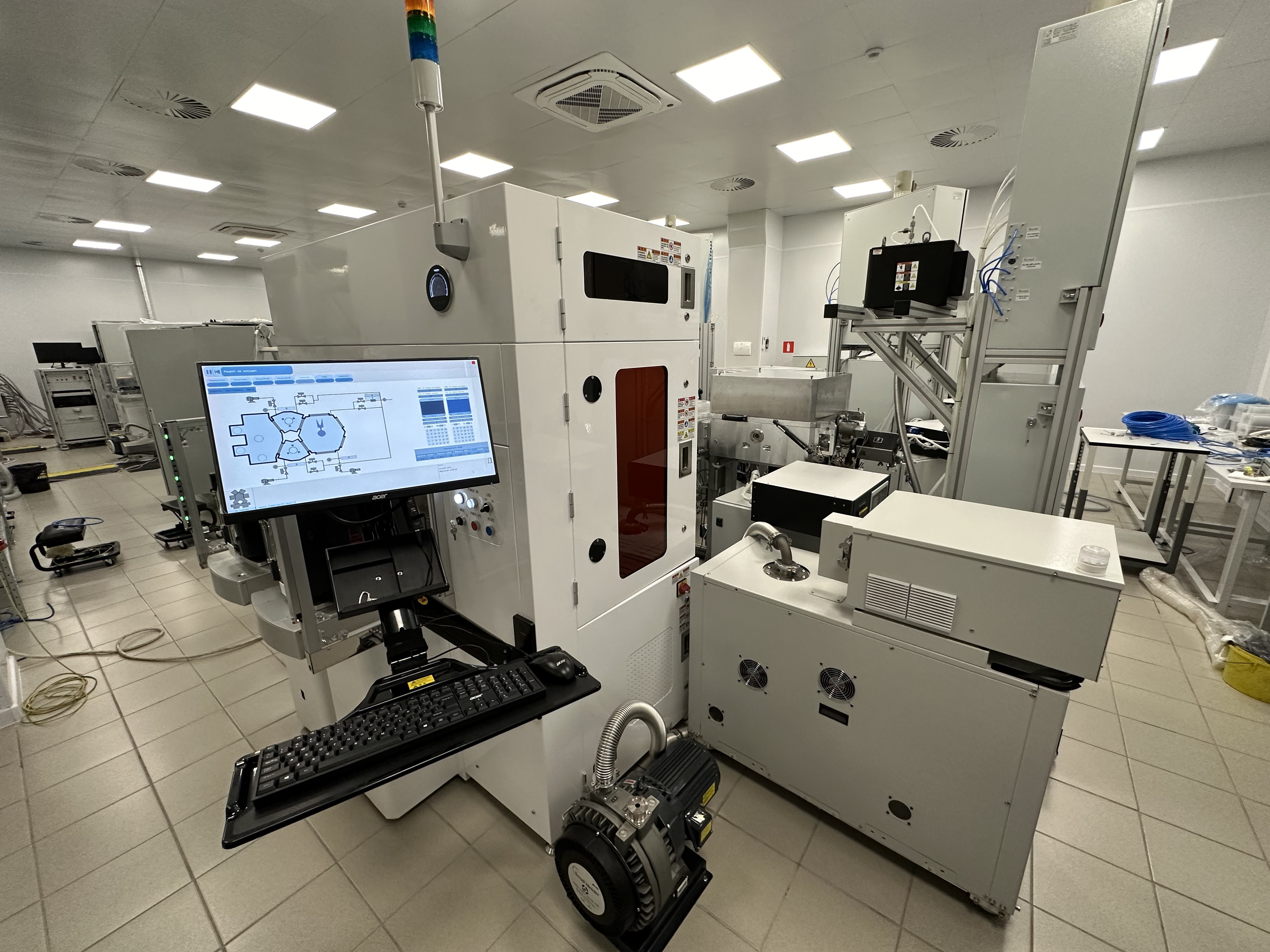

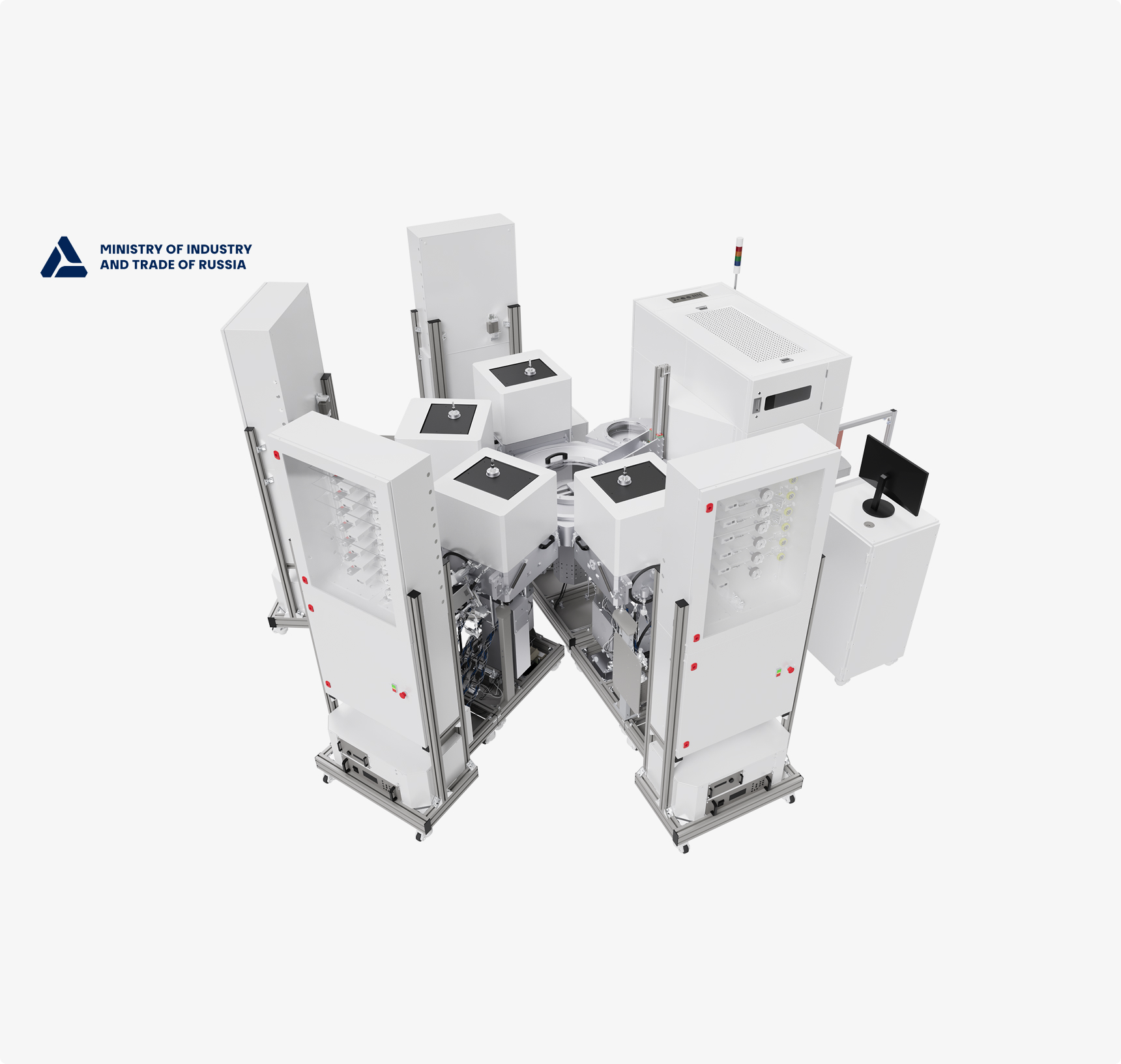

CLUSTER TM-300 CVD
3D
The cluster system is designed for plasma chemical deposition (CVD) with up to 65 nm design rules
More
Specifications:
Possibility of integration into a clean room
—
Yes
Wafer diameter
—
200mm, 300mm
Wafer loading
—
FOUP container, SMIF container
Developed with the support of the Russian Ministry of Industry and Trade in cooperation with MERI
—
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
CLUSTER TM-300 CVD
Loading...
Specifications:
- The size of the processed substrates, Ø mm 200, 300
- The number of simultaneously loaded substrates 1;
- Remote plasma source for chamber clean

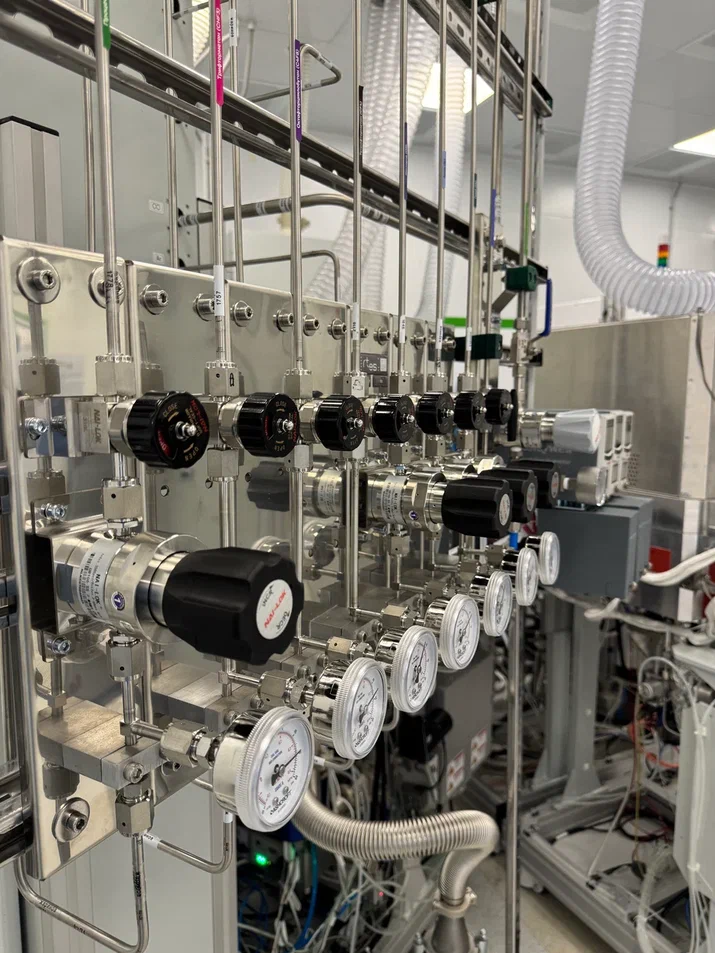

- TEOS feed system developed in-house
- Overall dimensions (WxDxH), mm 4570*4580*2500
- Wafers heating temperature, ºС 400
- Operating pressure range, Pa 133 ÷ 1333
- Deposition nonuniformity, % < 2,5
- Maximum generator power, W HF: 2000; LF: 1000
- Wafers heating temperature, ºС 480
- Operating pressure range, Pa 133 ÷ 1333
- Deposition nonuniformity, % < 2,5
- Maximum generator power, W HF: 2000; LF: 1000
- Wafers heating temperature, ºС 400
- Operating pressure range, Pa 133 ÷ 1333
- Deposition nonuniformity, % < 2,5
- Maximum generator power, W HF: 2000; LF: 1000
- Wafers heating temperature, ºС 550
- Operating pressure range, Pa 2×104÷ 8×104
- Deposition nonuniformity, % < 2,5
Warranty and post-warranty service;
The possibility of upgrading and reconfiguring equipment to meet customer requirements.
